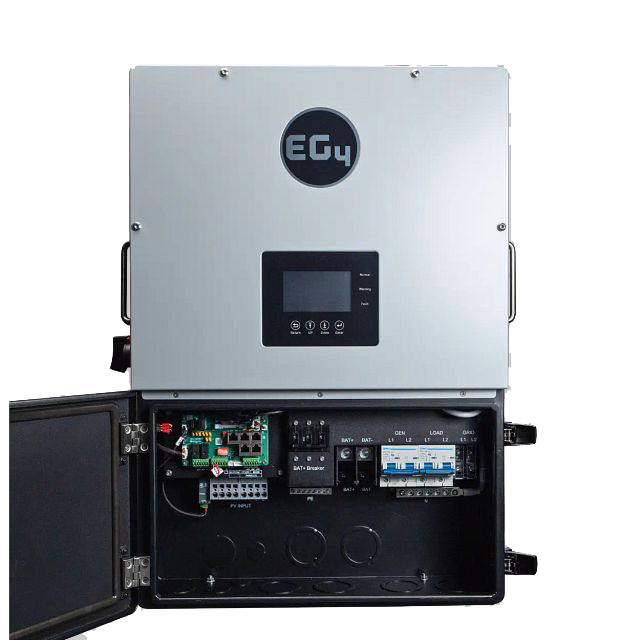

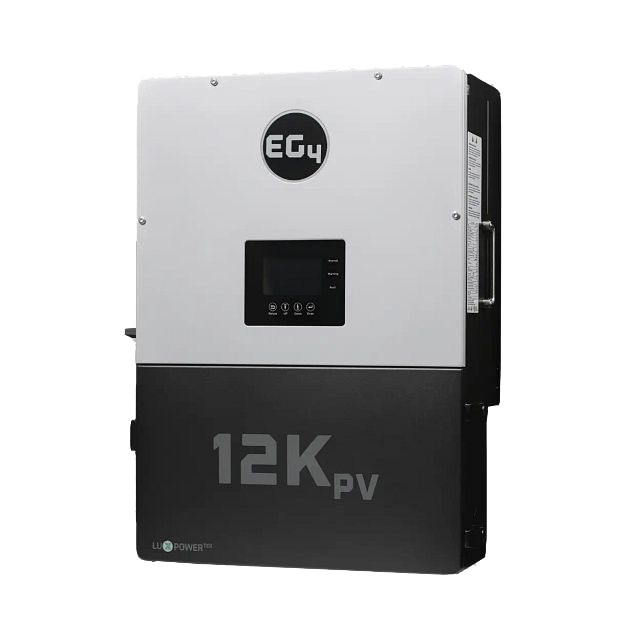

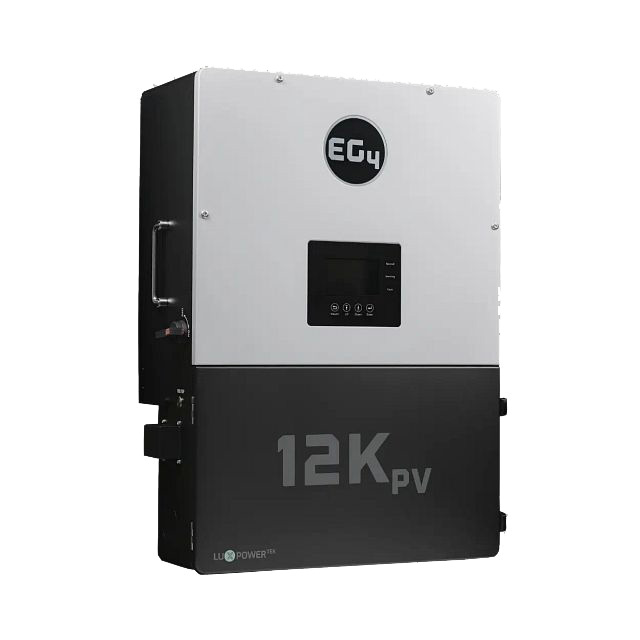

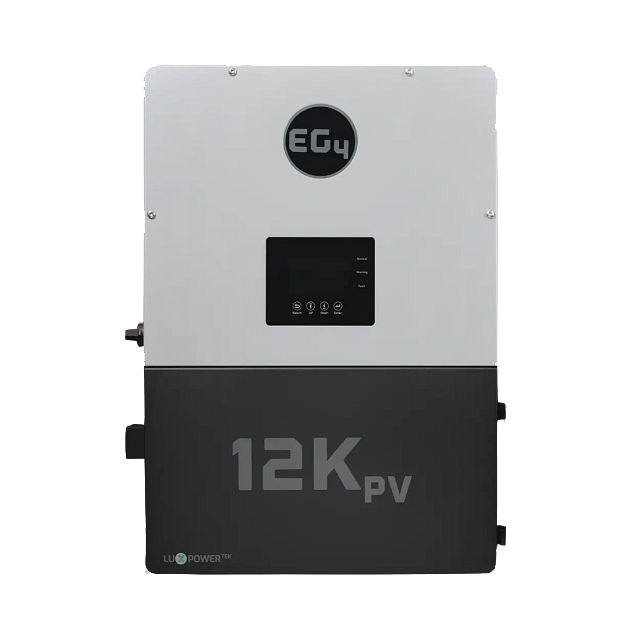

EG4® 12KPV Inverter

Easily integrate solar power into your current energy system or start a new one with the EG4^® 12kPV 48V split-phase hybrid inverter/charger. It utilizes up to 12kW of solar input, supplying up to 8kW for powering loads while using the remainder to charge your batteries. Designed for residential and light commercial applications, you can connect up to 10 units for a total power output of 80kW. The EG4 12kPV is designed to be compact and affordable, and its modular design allows for easy expansion. Users can monitor and update systems remotely using the EG4 monitoring website/app for added control and flexibility.

To learn more, download the spec sheet and installation guide.

Click and drag image to rotate.

To learn more, download the spec sheet and installation guide.

Features

Complete System Compatibility

Easily integrates with Briggs & Stratton 6.6 Battery System for a seamless solar energy solution.

Versatile Applications

Grid-tied or off-grid configurations.

Supports High Surge Loads

Capable of starting a 5-ton air conditioner without soft-start.

Monitoring and Updates

Use the EG4 monitoring app/website to monitor system and battery performance and update system firmware.

Load Imbalance Handling

Can manage up to 4,000W imbalance for 30 minutes.

Modular Design

Allows for easy expansion and scalability as power needs grow.

Generator Compatibility

Integrated generator input for added system reliability.

RSD/ESS Shutdown

Ensures safety with rapid shutdown capabilities.

Specifications

Model Number

EG4 12PV

Battery Input Voltage

48V

Rapid Shutdown Capable

YES

Maximum Paired Solar (DC Input)

15000W

Integrated MPPT Charge Controllers

Maximum Continuous Power

8000W

Maximum Output Power

16000W

Instantaneous Power (100ms)

16000W

Surge Power (5s)

12000W

CEC Weighted Efficiency

96.40%

Parallel Stacking

up to 10

Warranty Period

10 years

Battery Compatibility

Briggs & Stratton® SimpliPHI® 6.6

Certifications

UL1741, SA, SB, PCS CRD RAPID SHUT DOWN (RSD) NEC 2020:690.12 ARC-FAULT CIRCUIT INTERRUPTER (AFCI) NEC 2020:690.11 / UL1699B GROUND FAULT MONITORING (GFDI) NEC 2020:690.41(B) CSA 22.2.107.1 CSA 22.2.330 IEEE 1547.1:2020; IEEE 1547:2018 HAWAII RULE 14H CALIFORNIA RULE 21 PHASE I, II, III FCC PART 15, CLASS B

Dimensions (W x H x D)

29.5×20.5×11.2 in (750×520×285 mm)

Weight

110 lbs. (50 kg)

_{¹See operator’s manual or energy.briggsandstratton.com for complete warranty details.
All specifications listed are typical/nominal and subject to change without notice.
EG4 is a registered trademark of EG4 Electronics.}
