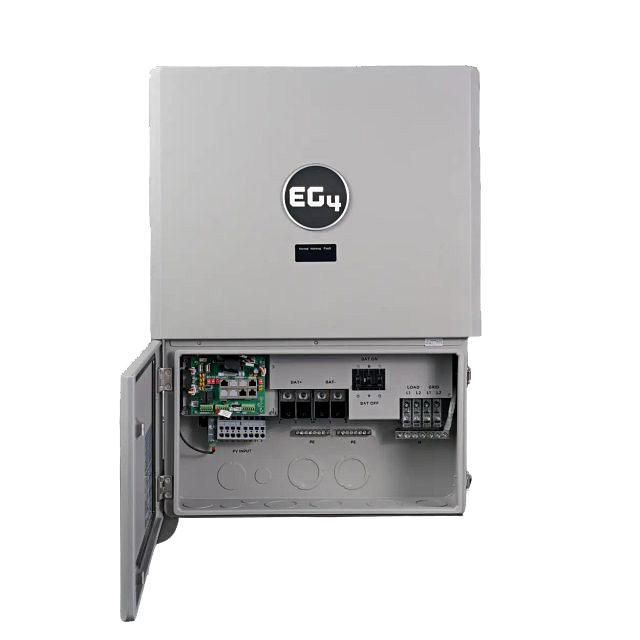

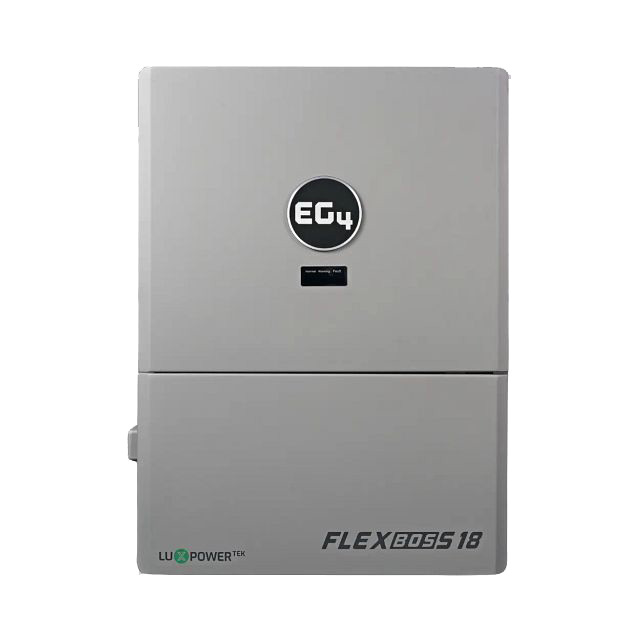

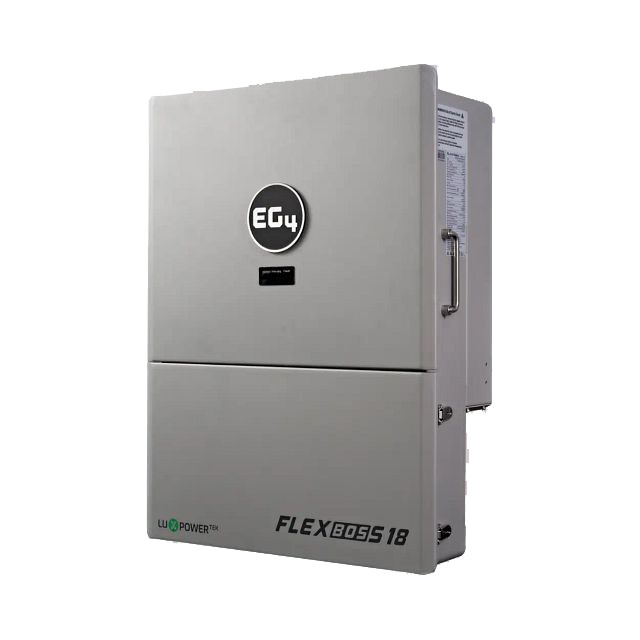

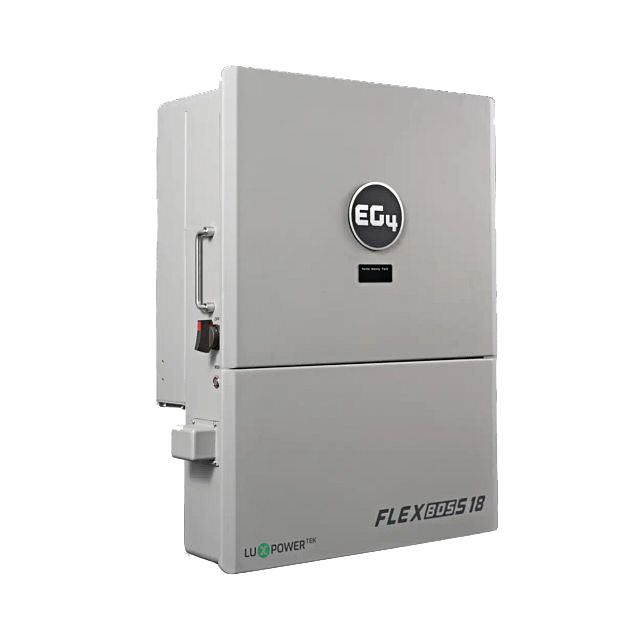

EG4® FlexBOSS18 Inverter

Name: eg4-flexboss18-inverter--powerful-and-costeffective-hybrid-inverter
Brand: Energy Solutions

The EG4^® FlexBOSS18 is a powerful and cost-effective hybrid inverter. With 13kW continuous output, up to 18kW solar input utilization, and 10kW battery-only output, it delivers exceptional performance for a wide range of solar applications. The FlexBOSS18 is also EMP-hardened, ensuring reliable performance during Electromagnetic Pulse (EMP) events.Built for versatility, the FlexBOSS18 seamlessly integrates with Briggs & Stratton® SimpliPHI^® 6.6 Battery System, including optimal pairing with EG4 GridBOSS system.

To learn more, download the spec sheet and user manual.

Click and drag image to rotate.

To learn more, download the spec sheet and user manual.

Click and drag image to rotate.

Features

Cost-effective Entry into Hybrid Solar

Affordable solution for users seeking to enter the hybrid solar market without compromising on performance.

Comprehensive Certification Package

Ensures reliability and safety with certifications for diverse installation needs.

Flexible Installation Options

Offers versatility in setup, making it suitable for both residential and commercial applications.

Enhanced Power Output

Delivers superior performance, providing more power for higher energy demands.

Complete System Compatibility

Easily integrates with Briggs & Stratton 6.6 Battery System and pairs perfectly with GridBOSS systems for a seamless solar energy solution.

EMP-Hardened

Ensures reliable operation during Electromagnetic Pulse (EMP) events.

Specifications

Model Number

FlexBOSS18

Battery Input Voltage

48V

Rapid Shutdown Capable

YES

Maximum Paired Solar (DC Input)

21000W

Integrated MPPT Charge Controllers

Maximum Continuous Power

10000W Battery Only / 13000W PV+Bat

Maximum Output Power

20000W

Instantaneous Power (100ms)

20000W

Surge Power (5s)

13500W

Parallel Stacking

Warranty Period

10 years

Battery Compatibility

Briggs & Stratton® SimpliPHI® 6.6

Certifications

UL1741, SA, SB, PCS CRD California Rule 21 Phase I, II, III CSA 22.2.107.1:2016 Ed. 4 CSA 22.2.330:2017 Ed. 1 IEEE 1547.1:2020; IEEE 1547:2018 Hawaii Rule 14H [HECO SRD IEEE 1547.1-2020 Ed.2

Dimensions (W x H x D)

30.43 x 22.8 x 11.2 in. (773 x 579 x 285 mm)

Weight

115 lbs. (52 kg)

_{¹See operator’s manual or energy.briggsandstratton.com for complete warranty details.
All specifications listed are typical/nominal and subject to change without notice.
EG4 is a registered trademark of EG4 Electronics.}
