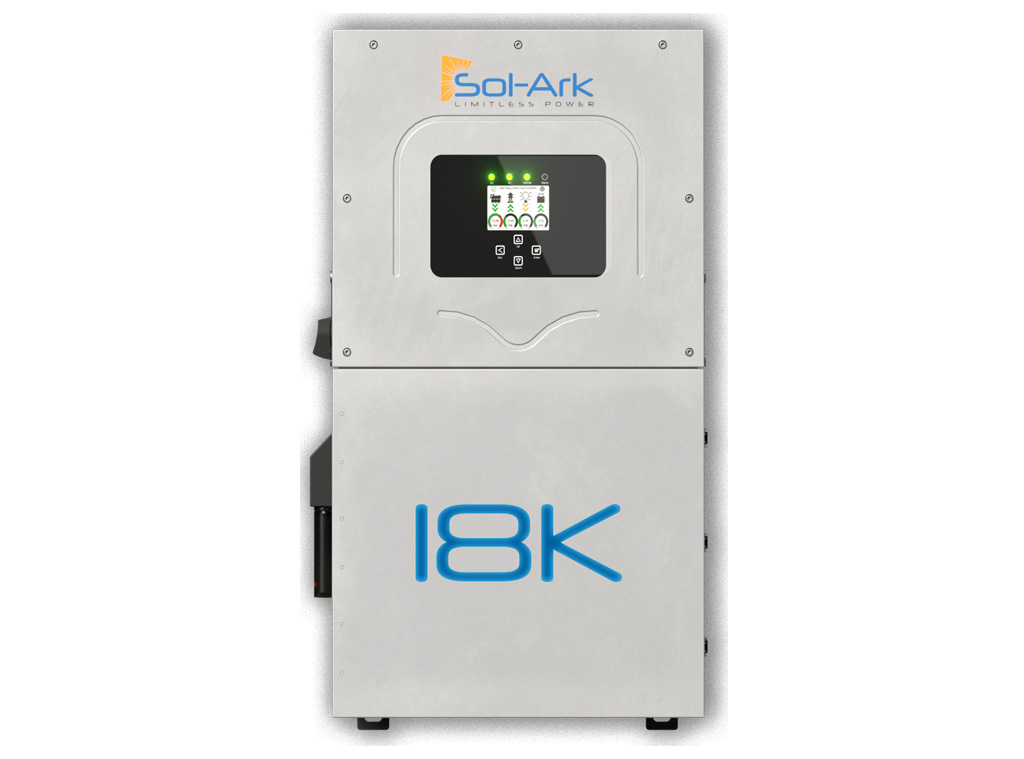

Sol-Ark® 18K-2P Hybrid Inverter

Name: solark-18k2p-hybrid-inverter--engineered-for-the-most-grueling-offgrid-or-home-backup-needs
Brand: Energy Solutions

The Sol-Ark^® 18K-2P hybrid inverter is engineered for the most grueling off-grid or home back-up needs, delivering up to 18kW of continuous power directly from battery storage to support large loads, as well as 36kVA of surge power for 10s to for demanding loads like HVAC units and motors. The 18K 2P supports more PV than any other residential inverter (over 40kW when utilizing AC coupled functionality). This power-house unit runs American engineered firmware, keeps your data stateside, and comes standard with a 10-year warranty.

To learn more, download the spec sheet and installation manual, or visit Sol-Ark's website.

Click and drag image to rotate.

To learn more, download the spec sheet and installation manual, or visit Sol-Ark's website.

Features

Max PV

Supports over 40kW of Solar with AC Coupling

Mega Power

50% more power than the leading competitors

Surge Power

Surge to meet Locked Rotor Amps

Data Lock

American Engineered Data Transmission

Specifications

Model Number

18K-2P-LV

Safety Features

PV DC Disconnect Switch, Ground Fault Detection, PV Arc Fault Detection, PV Input Lightning Protection, PV String Input Reverse Polarity Protection, AC Output Breaker - 200A, Surge Protection DC Type II / AC Type II

Rapid Shutdown Capable

Yes

Integrated MPPT Charge Controllers

Maximum Continuous Power

18kW

Surge Power (5s)

36kVA

Parallel Stacking

Up to 12 in parallel

Warranty Period

10 years

Battery Compatibility

Lithium / Lead Acid, 48V

Automatic Generator Start

2 wire start

Monitoring

MySolArk App

Certifications

UL1741 3rd SB, UL 1741 CRD-PCS, IEEE1547-2018 and interoperability using IEEE2030.5, Hawaiian Electric SRD V2.0, UL1699B PVDC AFCI, CSA C22.2 No.107

Dimensions (W x H x D)

863 x 464 x 282 mm (34 x 18.3 x 11.1 in)

Weight

62.4 kg / 137 lb

1_{¹See operator’s manual for complete warranty details.
All specifications listed are typical/nominal and subject to change without notice.}
