Introducing the

SimpliPHI® 6.6 Battery System

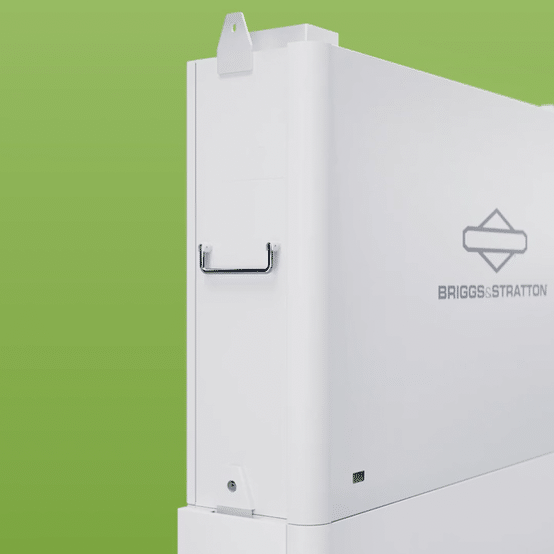

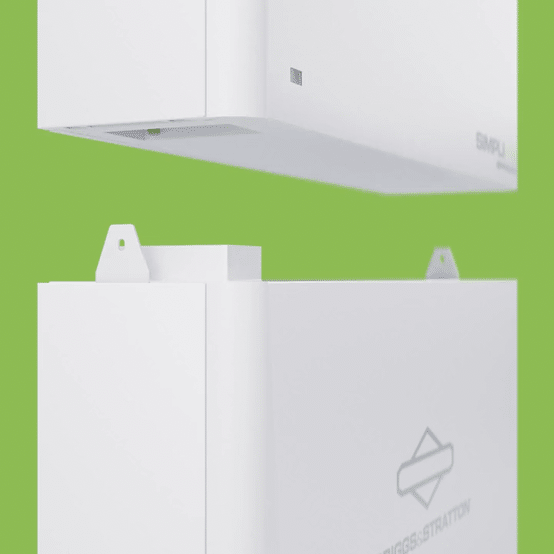

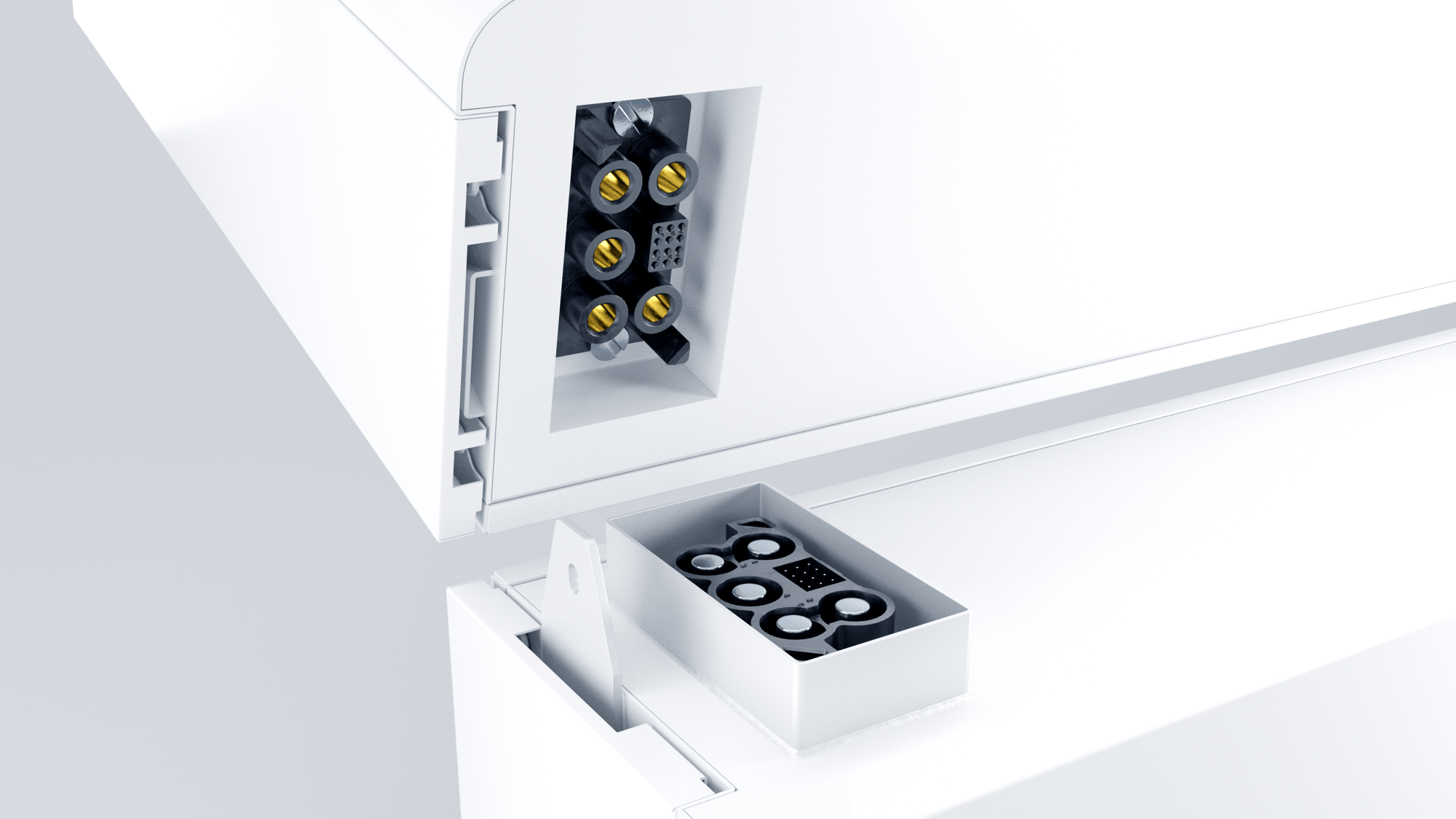

With a true, wire-free design, the SimpliPHI 6.6 Battery might just be the industry’s fastest battery to install. We’ve actually timed it. Assemble a stack of 3 in under 5 minutes! Freeing up your time to install more systems. And, it’s not just saving you time. We’ve eliminated the hassle of battery installations. Our RapidStak™ connector includes all power and communications in one connection. No wires. No DIP switches. Minimal tools. Just a simple, building block-style installation.

Powerful, Compact and Scalable

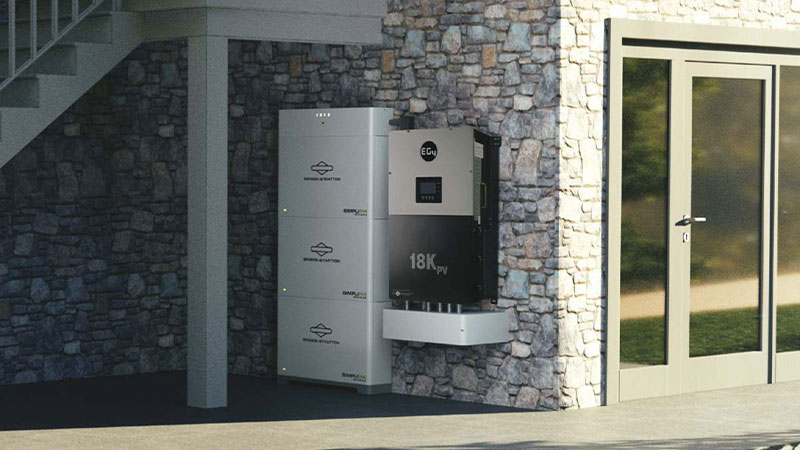

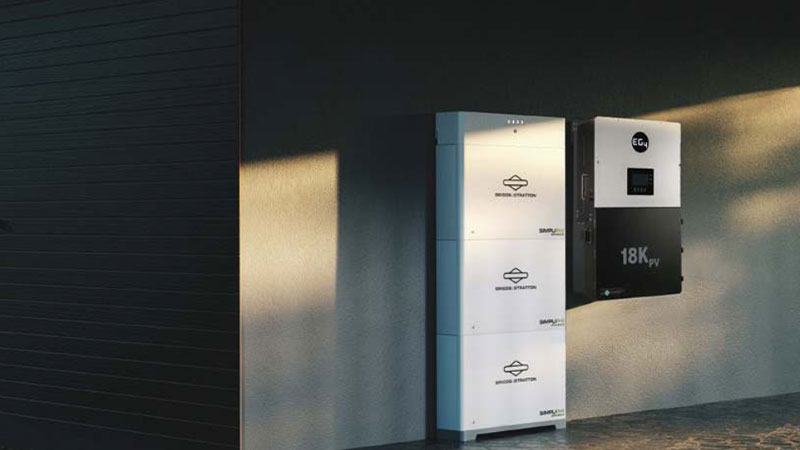

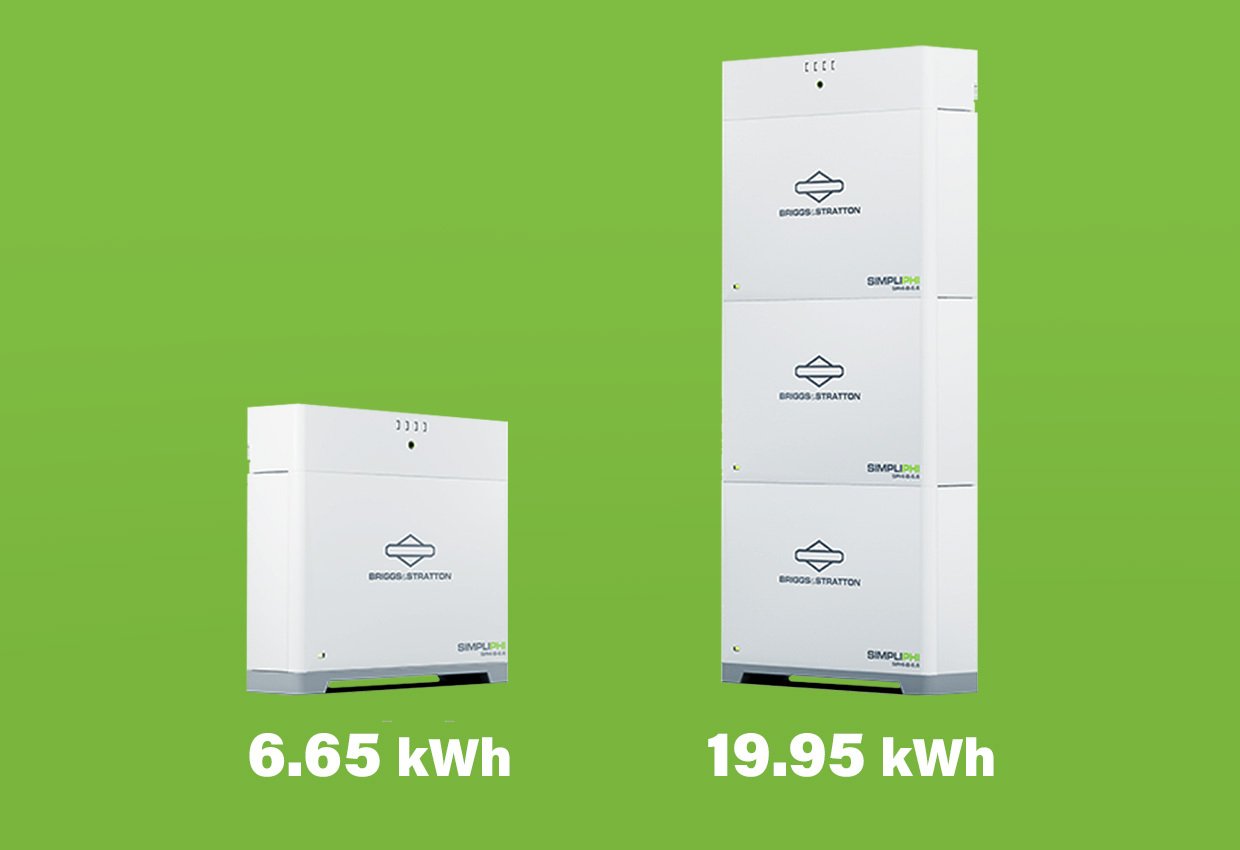

Each battery delivers 6.65 kWh. Stack up to three for 19.95 kWh of whole home power. The stackable design requires minimal space for maximum power. Scale up to 6 stacks (18 batteries) for 119.7 kWh for larger energy requirements.

2_Tile_Hero_SideBySide
SimpliPHI_6.6_Battery_Connector1

How We Stack Up

When you look closely, other batteries just don't compare to the SimpliPHI 6.6 Battery.

  SimpliPHI 6.6 HomeGrid Stack'd
Capacity per Battery 6.65 kWh 4.8 kWh
Max Stack Capacity 19.95 kWh 38.4 kWh
20 kWh Stack Capacity 19.95 kWh 19.2 kWh
Max Installation Capacity 119.7 kWh (18 batteries) 576 kWh (120 batteries)
Stackable Yes Yes
Wire-free Yes Yes
DIP Switches No Yes
Outdoor-rated Battery Yes Cabinet required
Wall Mount Option Yes No
Weight (battery only) 125 lbs 155 lbs
Charge Temp. Range 14° – 122° F / -10°C ~ 50°C 32°-113° F / 0°-45°C
Discharge/Operating Temp. Range -4° - 131°F / -20° ~ 55°C 14° - 140°F / -10° - 60°C
Cold Weather Software-driven self curtailment with CAN, Standard Load driven, heater Option
OTA Updates Yes No
Certifications UL 9540 Ed. 3, UL 1642, UL 1973, UN 38.3, UL 9540A, CEC (in process, SGIP (in process), OGPe (in process) UL 1642, UL 1973, UN 38.3, UL 9540, UL 9540A, CEC, SGIP, OGPe
Warranty 15 Years 10 Years
Time to Install 20 minutes 30-60 minutes
Time to Stack (20 kWh) < 5 min (three batteries) 20 min (four batteries)
MSRP price per kWh battery only $427 ~$526
MSRP price per kWh (20 kWh outdoor-rated system) $432 $675

SimpliPHI 6.6 Battery System

View our video for more information on this innovative battery system.



Click. Done. Your search for the perfect battery is over.

Fill out the form below to talk to one of our experts and learn about the benefits of this new product and becoming a Briggs & Stratton Energy Solutions Energy Storage Installer.

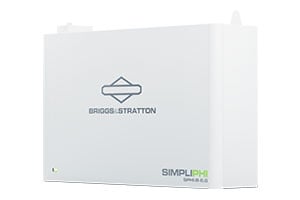

BSES_Simpliphi6-6_single
