BOSS.6 Storage Cabinet

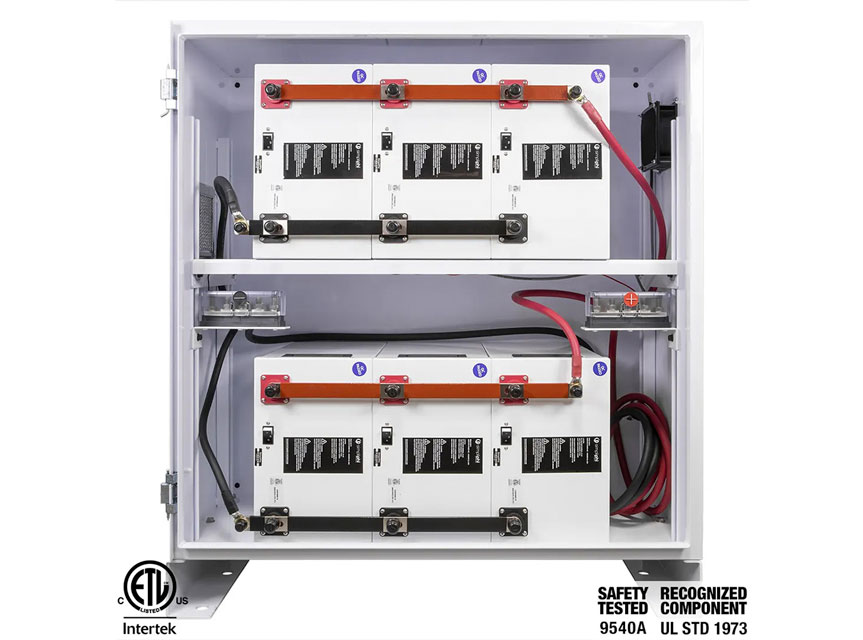

Expandable storage created specifically to be able to pair with the system you are designing. If you already have an energy storage system, the BOSS Cabinet can bring auxiliary battery power to your system. Each BOSS.6 System can hold up to six PHI-3.8-M Batteries to expand your system to a total of 22.8kWh. Encased in a carbon-steel enclosure, the BOSS.6 Cabinet is NEMA 3R-rated weather-resistant housing for indoor or outdoor placement. Click here to view sell sheet.
Features

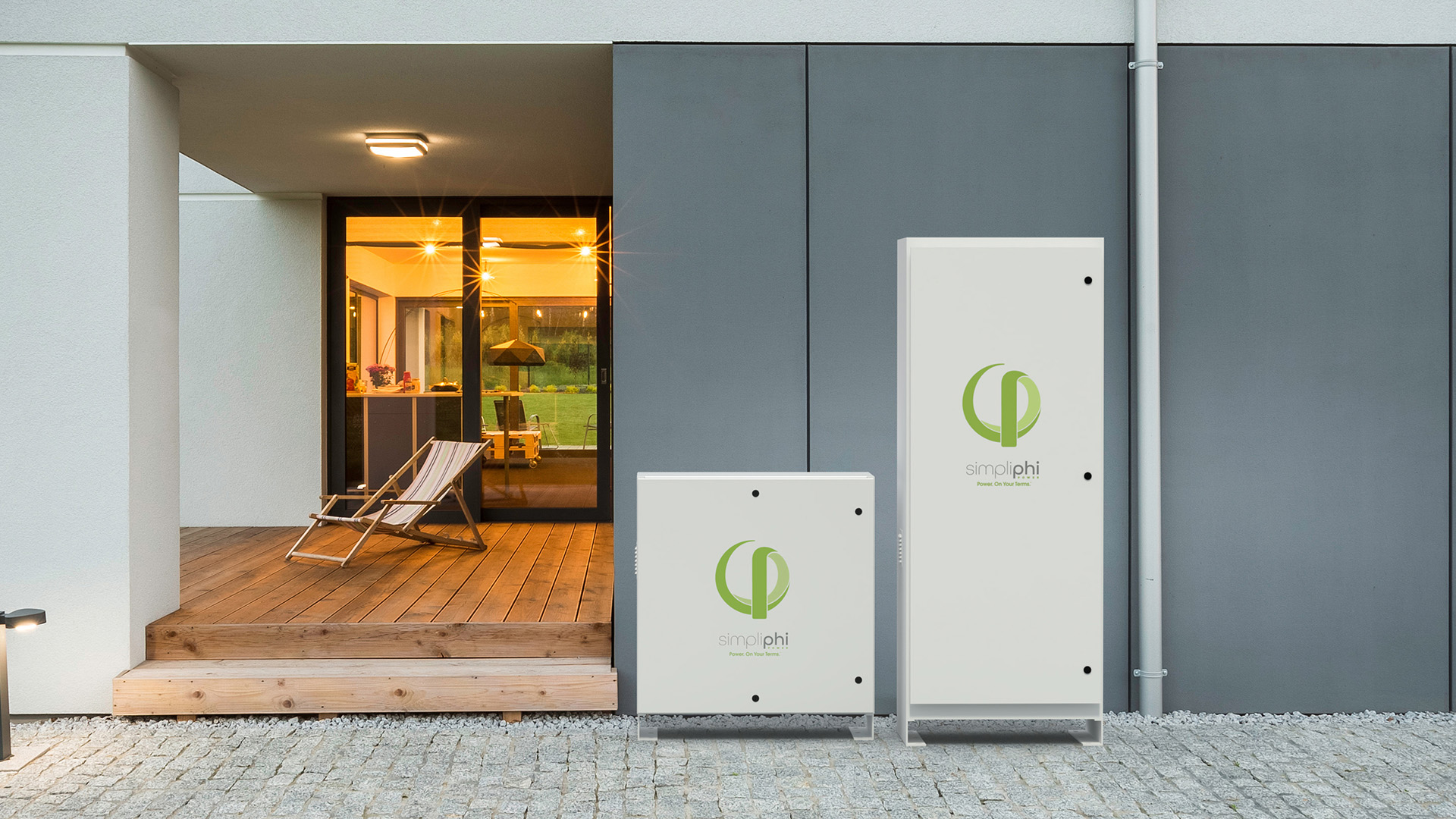

Weather Resistant Enclosure
BOSS Cabinets are rated to the NEMA 3-R Certification for indoor and outdoor installations. They include a corrosion-resistant fan that helps prevents the outdoor temperature from impacting the operation of batteries within the cabinet.
Certified Integrated Systems
BOSS Cabinets are a perfect complement to the AccESS integrated system. Both systems achieve a UL9540 and UL1973 certification rating when paired together.
Specifications
| BOSS-6 | |
| Enclosure Rating | NEMA 3R Outdoor rated |
| Maximum Contained Battery Quantity | Six (6) PHI 3.8 Batteries |
| Mounting | Free-standing or Pad-mounted |
| Knockouts | 3 x Trade Size 1 Knockouts per side (6 total) |
| Built-In DC Connections | 2 x 5-point Terminal Busbars, 3/8” lugs, 650 ADC |
| Enclosure Warranty Period | 2 years |
| Legacy Material Number | 53003 |
| Charging Temperature¹ | 32°F to 120°F (0°C to 49°C) |
| Weight | 180 lbs. (81.64 kg.) w/o batteries |
| Dimensions (W x H x D) | 36” W x 36”H (40” w/feet) x 16” D |
