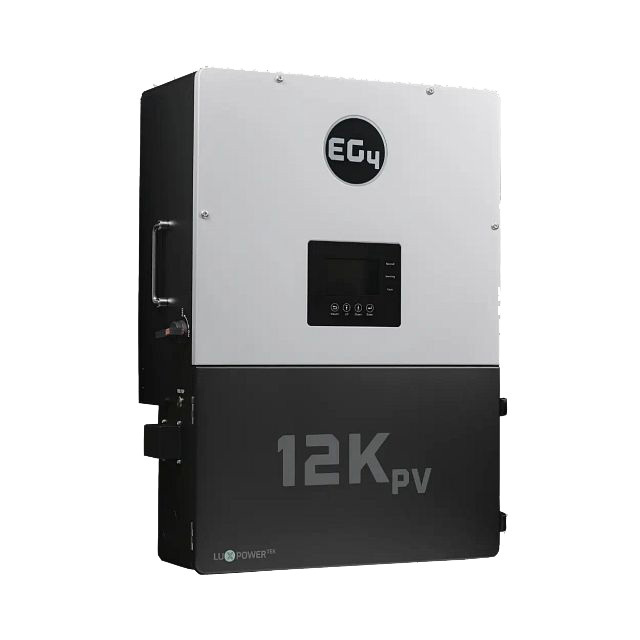

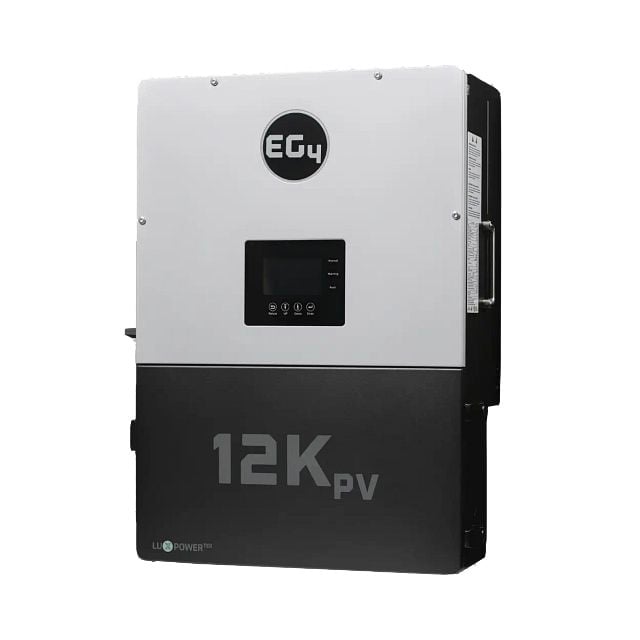

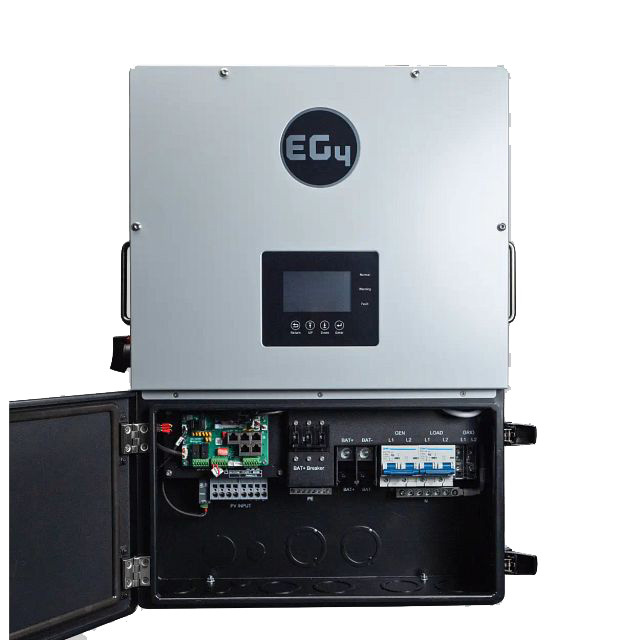

EG4® 12KPV Inverter
Easily integrate solar power into your current energy system or start a new one with the EG4® 12kPV 48V split-phase hybrid inverter/charger. It utilizes up to 12kW of solar input, supplying up to 8kW for powering loads while using the remainder to charge your batteries. Designed for residential and light commercial applications, you can connect up to 10 units for a total power output of 80kW. The EG4 12kPV is designed to be compact and affordable, and its modular design allows for easy expansion. Users can monitor and update systems remotely using the EG4 monitoring website/app for added control and flexibility. To learn more, download the spec sheet and installation guide.
Features
Complete System Compatibility
Easily integrates with Briggs & Stratton SimpliPHI 6.6 Battery System for a seamless solar energy solution.
Versatile Applications
Grid-tied or off-grid configurations.
Supports High Surge Loads
Capable of starting a 5-ton air conditioner without soft-start.
Monitoring and Updates
Use the EG4 monitoring app/website to monitor system and battery performance and update system firmware.
Load Imbalance Handling
Can manage up to 4,000W imbalance for 30 minutes.
Modular Design
Allows for easy expansion and scalability as power needs grow.
Generator Compatibility
Integrated generator input for added system reliability.
RSD/ESS Shutdown
Ensures safety with rapid shutdown capabilities.
Specifications
| EG4 12PV | |
| Battery Input Voltage | 48V |
| Rapid Shutdown Capable | YES |
| Maximum Paired Solar (DC Input) | 15000W |
| Integrated MPPT Charge Controllers | 2 |
| Maximum Continuous Power | 8000W |
| Maximum Output Power | 16000W |
| Instantaneous Power (100ms) | 16000W |
| Surge Power (5s) | 12000W |
| CEC Weighted Efficiency | 96.40% |
| Parallel Stacking | up to 10 |
| Weight | 110 lbs. (50 kg) |
| Dimensions (W x H x D) | 29.5×20.5×11.2 in (750×520×285 mm) |
| Warranty Period | 10 years |
| Battery Compatibility | Briggs & Stratton® SimpliPHI® 6.6 |
| Certifications | UL1741, SA, SB, PCS CRD RAPID SHUT DOWN (RSD) NEC 2020:690.12 ARC-FAULT CIRCUIT INTERRUPTER (AFCI) NEC 2020:690.11 / UL1699B GROUND FAULT MONITORING (GFDI) NEC 2020:690.41(B) CSA 22.2.107.1 CSA 22.2.330 IEEE 1547.1:2020; IEEE 1547:2018 HAWAII RULE 14H CALIFORNIA RULE 21 PHASE I, II, III FCC PART 15, CLASS B |
1 Max operating conditions. Refer to Installation Manual for recommended conditions.
