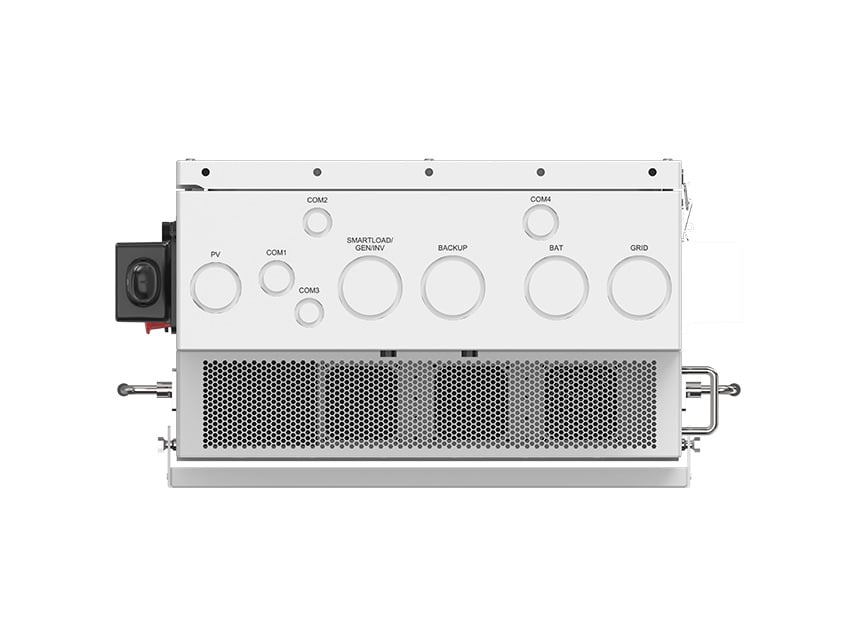

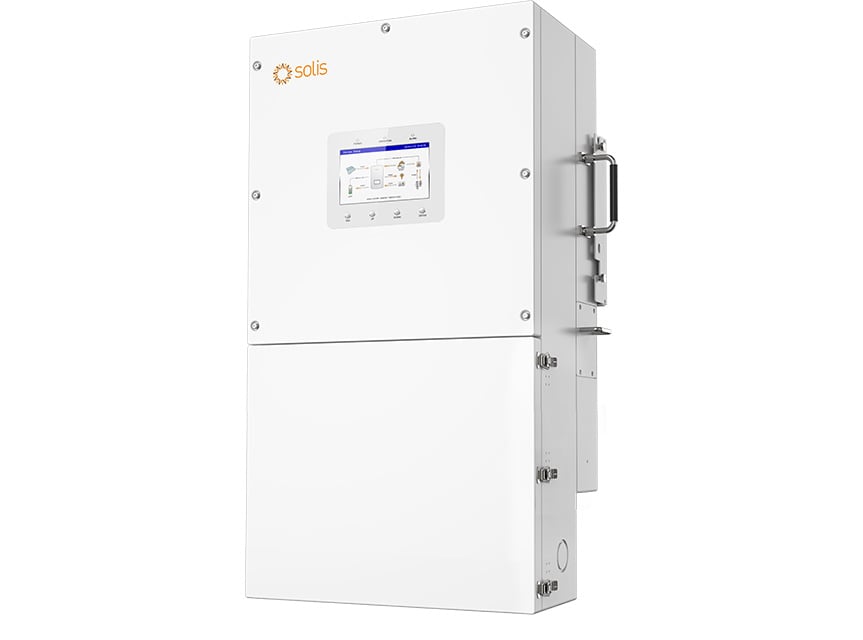

Solis® LV Home Hybrid Inverter
The Solis® LV Home Hybrid Inverter is a flexible inverter with integrated bypass and passthrough that seamlessly pairs with the Briggs & Stratton® SimpliPHI® 6.6 Battery. This inverter features a smart design that integrates with solar, generator or utility inputs in either AC or DC configurations to meet a variety of on-grid and off-grid applications. View the spec sheet and manual.
Features
Flexible Applications
48V hybrid design can function on-grid, off-grid or act as a microgird.
Better Performance
Faster switchover times supports high-input currents and faster charge times.
Minimal Ripple Current
Less that 1% battery ripple current, vs. 20-30% from competitors. Lower ripple means less heat, less SEI degradation, and a longer battery lifecycle.
Streamlined Installation
Integrated 200A passthrough and bypass are fully integrated to limit external hardware, save costs and streamline storage installation.
Flexible Configuations
Smart port enables flexible configurations like AC coupling or generator pairing.
High Input Current
High input current (20A) supports larger modules, improving power density and eliminating clipping.
Efficient
The battery's DC side can handle a maximum charge/discharge current of up to 290A, allowing it to store more surplus energy generated by PV systems for better efficiency.
Specifications
| S6-EH2P(9.6-16)K03-SV-YD-L-US | |
| Battery Input Voltage | 48VDC |
| Rapid Shutdown Capable | Integrated Transmitter |
| Integrated MPPT Charge Controllers | 3/2 |
| Maximum Output Power | 16kW |
| CEC Weighted Efficiency | 95.45% |
| Parallel Stacking | 6 inverters |
| Weight | 145.06 lbs (65.8 kg) |
| Dimensions (W x H x D) | 21.02 inches x 36.61 inches x 11.69 inches (534 × 930 × 297 mm) |
| Warranty Period | 10-Year Limited Warranty with Extensions up to 25 Years |
| Automatic Generator Start | Included |
| Monitoring | SolisCloud |
| Certifications | UL 1741 PVRSS, UL 1699B, UL 1998 (US), UL 1741, UL 1741 SB, CSA C22.2107.1-1 |
| Manuals |
See the Solis spec sheet for the most up to date specifications
All specifications listed are typical/nominal and subject to change without notice.
Engineered and Manufactured in China
